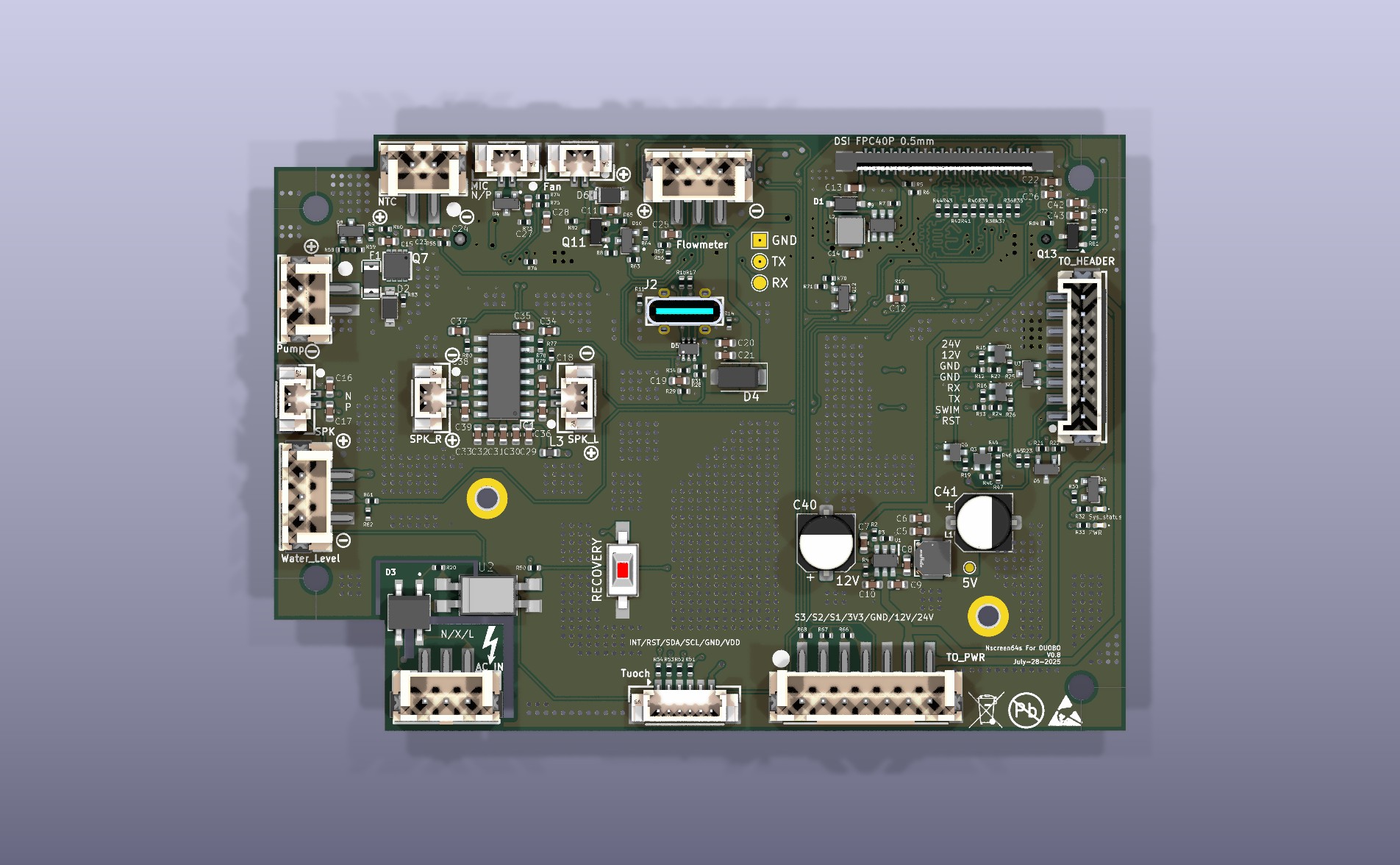

YeaCreate-RK3326s-DUOBO 3D Model
YeaCreate-RK3326s-DUOBO

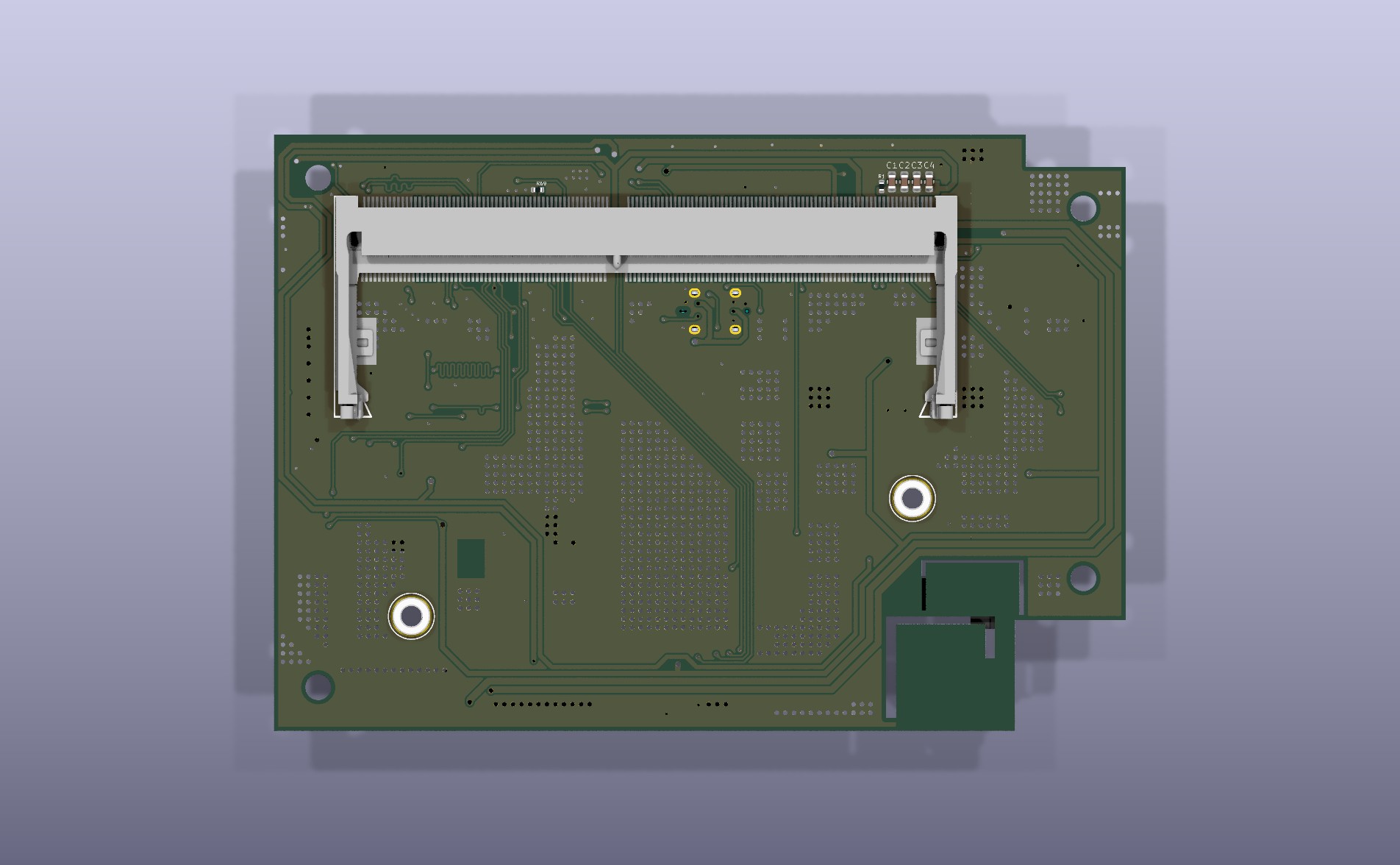

YeaCreate-RK3326s-DUOBO Back of peripheral board
Introduction
YeaCreate-RK3326s-DUOBO is an integrated expansion solution based on the high-performance Rockchip RK3326s processor, specifically designed and developed for LG DUOBO's high-end coffee machines. The core objective is to seamlessly upgrade traditional coffee machines into a new generation of intelligent and multi-functional products, meeting the growing demands of modern business scenarios, remote management, intelligent interaction and the diversity of beverages.

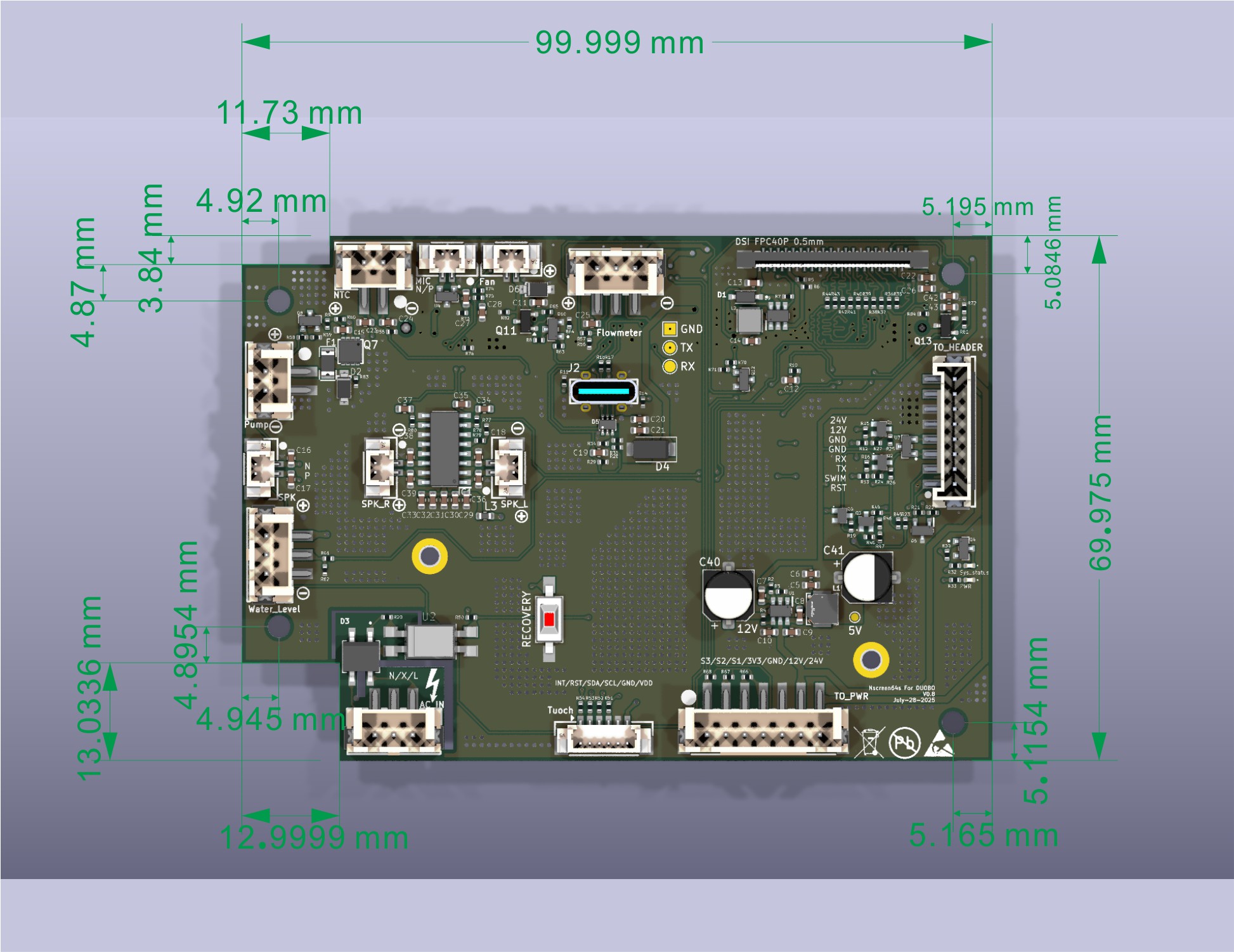

Peripheral plate size

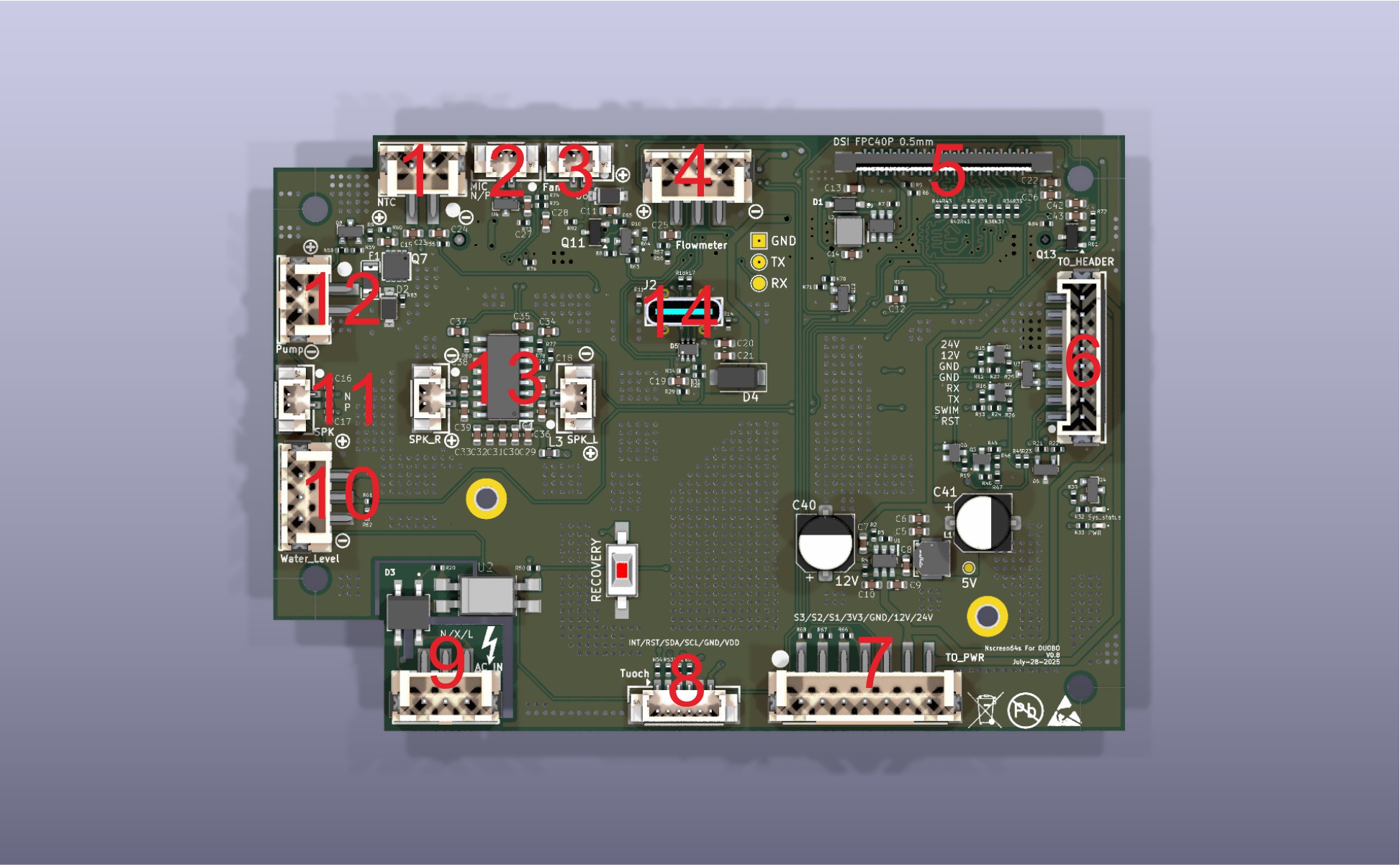

Function List
|
Number
|
Description
|
|
1
|
NTC Temperature Sensor Interface
|
|
2
|
MIC Interface (Optional)
|
|
3
|
Cooling Fan Interface (Optional)
|
|
4
|
Water Flow Sensor Interface
|
|
5
|
LCD display interface, supporting a resolution of 1920x1080
|
|
6
|
Head Small Board Control Interface
|
|
7
|
Power input, supporting 24V/12V
|
|
8
|
Touch Key Interface
|
|
9
|
AC CHECK interface, used for precise temperature control (optional)
|
|
10
|
Water Level Detection Interface
|
|
11
|
Audio output (without power amplifier) - choose one of two
|
|
12
|
Water Pump Control Interface
|
|
13
|
Type-C power supply and programming download
|
|
14
|
Audio output (with power amplifier) - choose one of two
|
|
15
|
Reset Button
|
